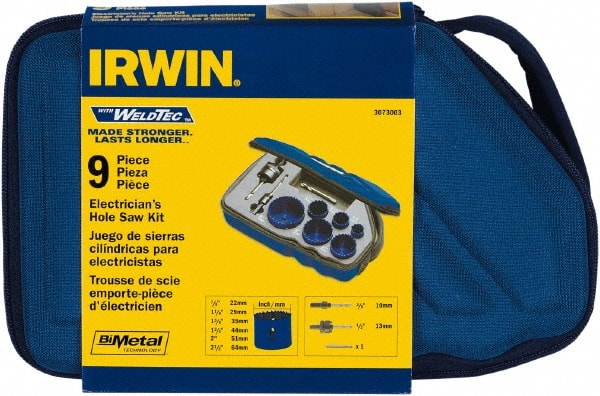

Irwin Blades - 9 Piece, 7/8" to 2-1/2" Saw Diam, Electrician's Hole Saw Kit - Bi-Metal, Toothed Edge, Pilot Drill Model No. 373000, Includes 6 Hole Saws
Item #: 57787582
Brand: Irwin Blades
Model #: 3073003
Exact Tooling IR#: 04
Features and Benefits
Bi-metal blades feature a toothed edge made from high speed steel (HSS) attached to a flexible steel backing through an electron-beam welding process. This configuration results in a blade that makes precise cuts while resisting breakage. They are used on ferrous and nonferrous metals.
The cutting surface of a toothed edge is composed of a row of pointed teeth. Common tooth variations include the number of teeth per inch and pitch pattern. They are used on ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Minimum Saw Diameter (Inch) | 7/8 |
| Maximum Saw Diameter (Inch) | 2-1/2 |
| Number of Hole Saws | 6 |
| Saw Material | Bi-Metal |
| Cutting Edge Style | Toothed Edge |
| Kit Type | Electrician's |
| Number of Pieces | 9 |
| Kit Includes | (1) 1/2" Hex Arbor; (1) 3/8" Hex Arbor; (1) Pilot Drill; (6) Hole Saws |
| Saw Diameter (Inch) | 7/8; 1-1/8; 1-3/8; 1-3/4; 2; 2-1/2 |
| Pilot Drill Model Number | 373000 |
| Material Application | Aluminum; Brass; Cast Iron; Stainless Steel; Steel; Tool Steel |
| Storage Unit Type | Case |
| Recommended RPM | (Aluminum) 205-585; (Brass) 180-520; (Cast Iron) 90-260; (Mild Steel) 135-390; (Tool & Stainless Steel) 65-195 |
| Maximum Saw Diameter (Decimal Inch) | 2-1/2 |
| Minimum Saw Diameter (Decimal Inch) | 7/8 |
| Saw Diameter (Decimal Inch) | 0.8750; 1.1250; 1.3750; 1.7500; 2.0000; 2.5000 |
| Saw Diameter (mm) | 22.23; 28.58; 34.93; 44.45; 50.80; 63.50 |
