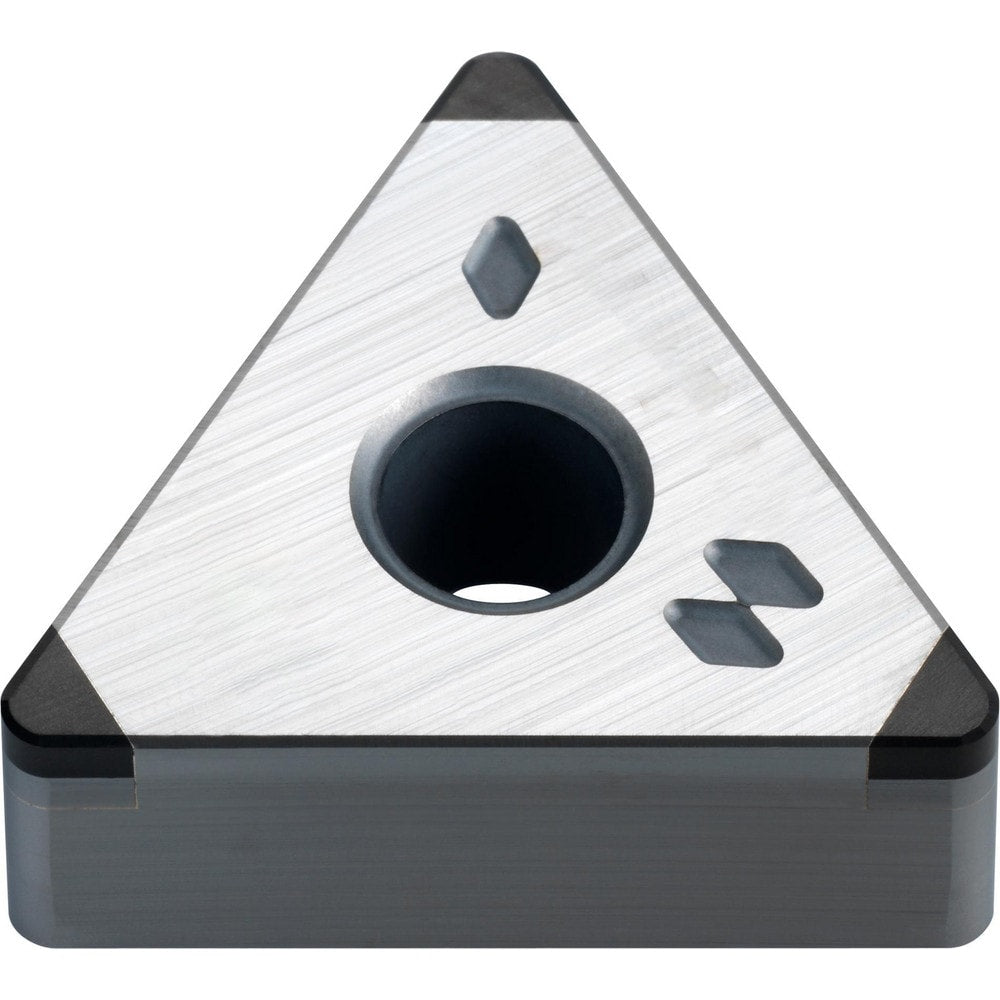

Turning Insert: NP-TNGA332-FS3 MB4120, Cubic Boron Nitride (CBN)
Item #: 84227057
Brand: Mitsubishi
Model #: 10594988
Product Specifications
| ANSI Insert Code | TNGA |
| ISO Insert Code | TNGA |
| Relief Angle | 0.000 |
| Insert Style | TNGA |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.00 |
| Manufacturer Grade | MB4120 |
| Coating/Finish | Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.52 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Triangle |
| Side Clearance | Negative |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | CBN |
| Rake | Negative |
| Primary Workpiece Material | Sintered Iron; Hardened Steel |
| Primary Workpiece Material Code | H; K |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | Pressed |
| Rake Angle | 0 |
| Cutting Edge Style | Chamfered and Rounded |
| Full Radius | No |
| Tip Length (Decimal Inch) | 0.0709 |
| Tip Length (mm) | 1.80 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
| Country of Origin | Japan |
