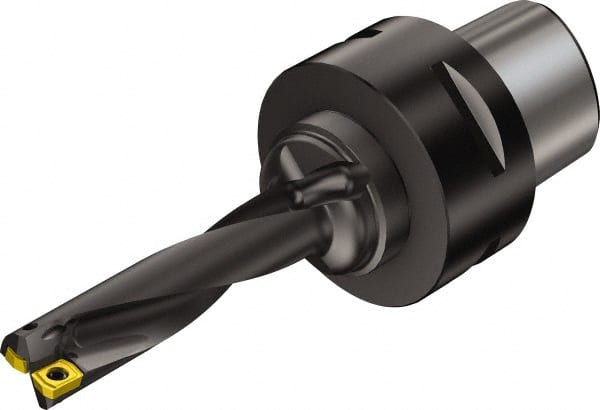

Sandvik Coromant - 39mm Max Drill Depth, 3xD, 12mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 57872137
Brand: Sandvik Coromant
Model #: 5765275
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 12.00 |
| Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Depth (mm) | 39.00 |
| Maximum Drill Depth (Decimal Inch) | 1.5354 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.50 |
| Overall Length/Projection (mm) | 95.00 |
| Overall Length/Projection (Decimal Inch) | 3.7402 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Body Length (Decimal Inch) | 2.7803 |
| Body Length (mm) | 70.62 |
| Shank Length (mm) | 24.38 |
| Shank Length (Decimal Inch) | 0.9600 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
