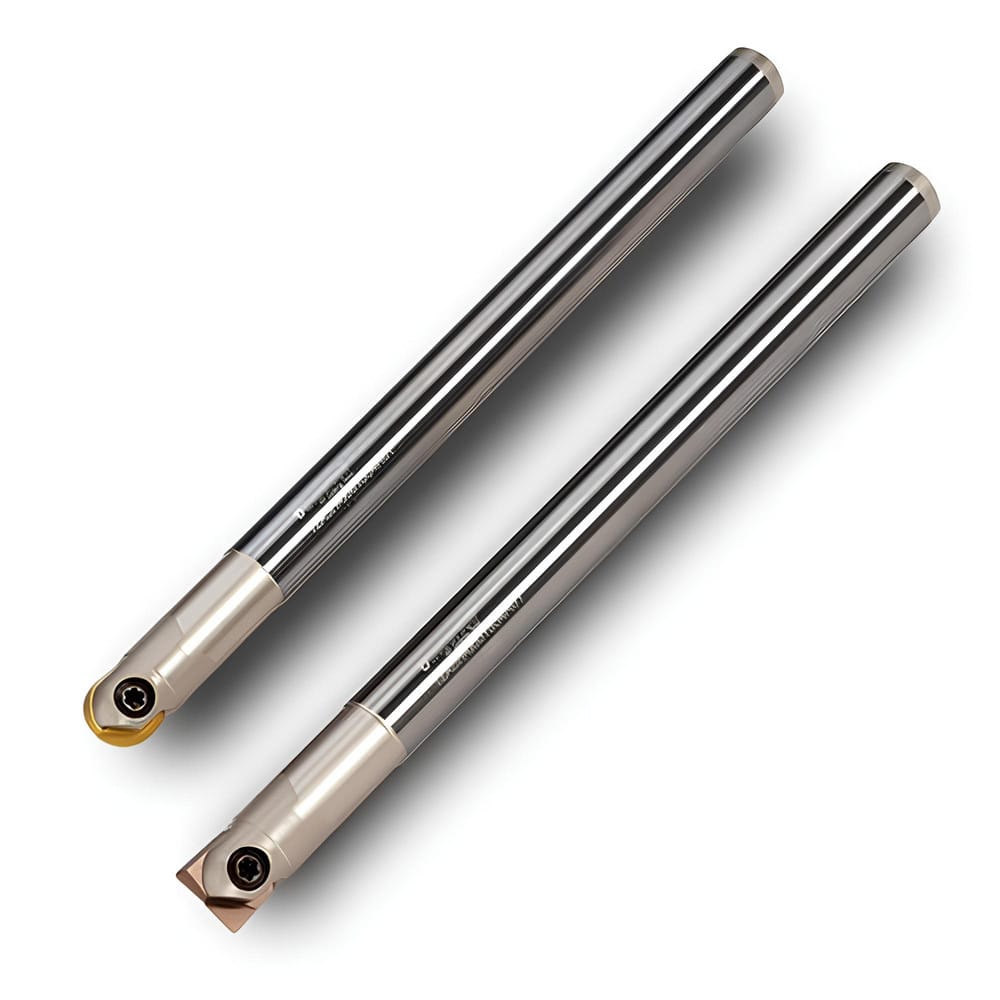

Indexable Ball Nose End Mills; Milling Diameter: 0.7500 in; Maximum Depth Of Cut: 0.3700 in; Shank Diameter: 0.7500 in; Shank Type: Cylindrical; Compatible Insert Style: GQHG; Compatible Insert Size Code: 1905; Toolholder Style: 12A5M; Series: 12A9; Overa
Item #: 57915977
Brand: Ingersoll Cutting Tools
Model #: 3031023
Product Specifications
| Milling Diameter | 0.7500 in |
| Maximum Depth Of Cut | 0.3700 in |
| Shank Diameter | 0.7500 in |
| Shank Type | Cylindrical |
| Compatible Insert Style | GQHG |
| Compatible Insert Size Code | 1905 |
| Toolholder Style | 12A5M |
| Series | 12A9 |
| Overall Length (mm) | 4.00 |
| Overall Length (Decimal Inch) | 4.00 |
| Overall Length (Inch) | 4.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | None |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.2500 in |
