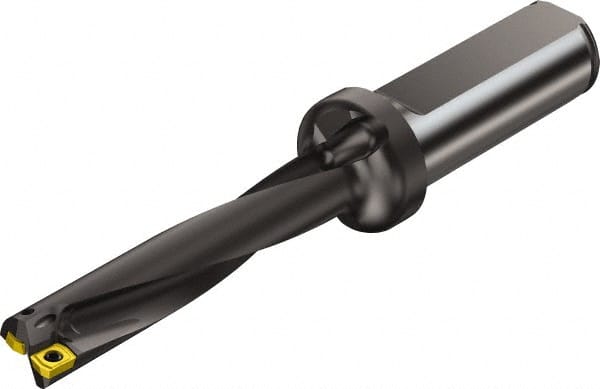

Sandvik Coromant - 154.367mm Max Drill Depth, 5xD, 1.187" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 57980674
Brand: Sandvik Coromant
Model #: 5723334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Maximum Drill Depth (mm) | 154.37 |
| Maximum Drill Depth (Decimal Inch) | 6.0774 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3.5 |
| Insert Size (Decimal Inch) | 0.1378 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2736 |
| Maximum Drill Diameter (mm) | 30.15 |
| Overall Length/Projection (mm) | 237.06 |
| Overall Length/Projection (Decimal Inch) | 9.3332 |
| Insert Compatibility (Outside or Peripheral) | 06P |
| Flute Length (mm) | 172.05 |
| Flute Length (Decimal Inch) | 6.7735 |
| Body Length (Decimal Inch) | 6.0770 |
| Body Length (mm) | 154.36 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Radius (Decimal Inch) | 0.5935 |
| Series | CoroDrill 880 |
