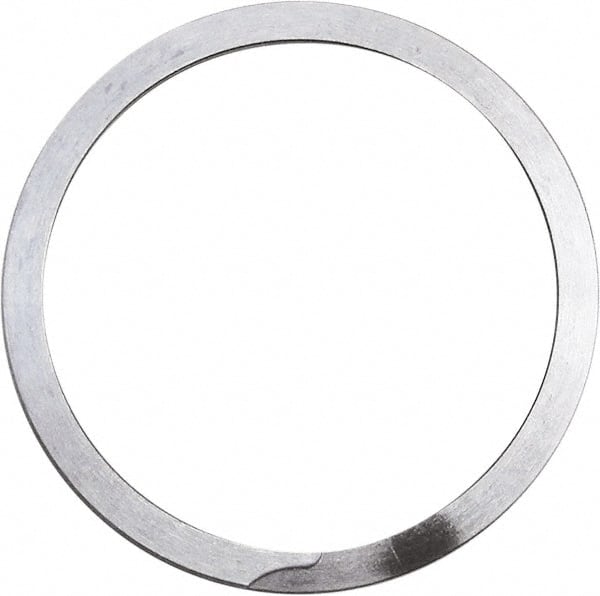

Rotor Clip - 4" Bore Diam, Stainless Steel Internal Spiral Retaining Ring
Item #: 70231451
Brand: Rotor Clip
Model #: KG-400SJ
| Product Specifications | |
|---|---|
| Type | Spiral |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 4 |
| Bore Diameter (Decimal Inch) | 4.0000 |
| Groove Diameter (Decimal Inch) | 4.2400 |
| Groove Width (Decimal Inch) | 0.1200 |
| Free Outside Diameter (Decimal Inch) | 4.2700 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.1110 |
| Material Grade | 302 |
| Finish/Coating | Uncoated |
| Groove Depth (Decimal Inch) | 0.1200 |
| Inside Diameter (Decimal Inch) | 3.6460 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.000 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 33930 (Groove Safety Factor); 55800 (Ring Safety Factor) |
| Fastener Standard | AISI 302; AMS-5866 |
