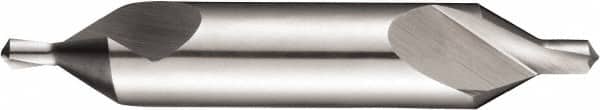

DORMER - Metric 60° Incl Angle High Speed Steel Combo Drill & Countersink
Item #: 80998271
Brand: DORMER
Model #: 0138953
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | High Speed Steel |
| Included Angle | 60 |
| Trade Size | Metric |
| Body Diameter (mm) | 18.00 |
| Body Diameter (Decimal Inch) | 0.7092 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5460 |
| Drill Point Diameter (Decimal Inch) | 0.2362 |
| Drill Point Diameter (mm) | 6.00 |
| Finish/Coating | Bright |
| End Type | Double |
| Cutting Direction | Right Hand |
| Drill Point Length (Decimal Inch) | 8.00 to 9.20 |
| Drill Point Angle | 122 |
| Countersink Application | Countersinking |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Material Application | Alloy Steel; Aluminum; Brass; Bronze; Carbon Steel; Cast Iron; Cermets; Copper; Hardened Steel; Magnesium; Nickel; Plastics; Stainless Steel; Steel; Titanium |
| Series/List | A201 |
