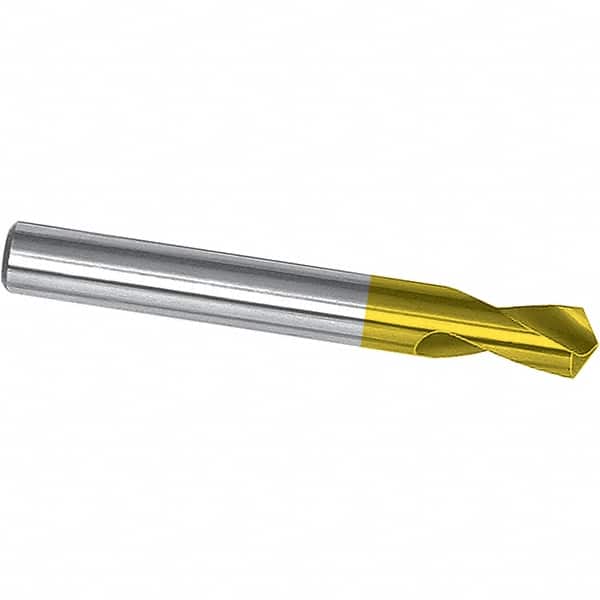

Magafor - 18mm Body Diam, 120°, 5-1/8" OAL, Cobalt Spotting Drill
Item #: 95394839
Brand: Magafor
Model #: 80089618000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 18.00 |
| Drill Point Angle | 120 |
| Spotting Drill Material | Cobalt |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (mm) | 130.00 |
| Overall Length (Inch) | 5-1/8 |
| Flute Length (mm) | 40.00 |
| Flute Length (Inch) | 1-5/8 |
| Shank Diameter (mm) | 18.0000 |
| Drill Bit Grade | High Performance |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spot Drilling |
| Material Application | Hard Alloy |
| Series/List | 0896 |
