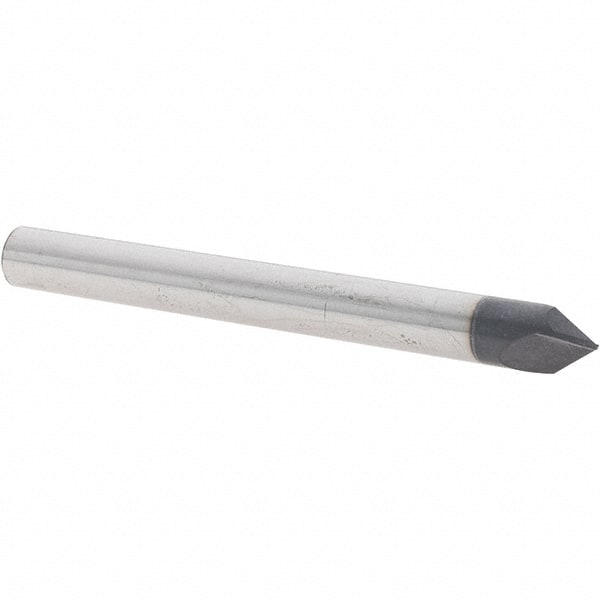

Melin Tool - 1/4" Diam 2 Flute Single End Solid Carbide Chamfer Mill
Item #: 57836280
Brand: Melin Tool
Model #: 56284
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 1/4 |
| Included Angle A | 90 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 2 |
| End Type | Single |
| Length of Cut (Inch) | 1/8 |
| Length of Cut (Decimal Inch) | 0.1250 |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering |
| Material Application | Alloys; Cast Iron; Non-Ferrous Metals; Stainless Steel; Steel |
| Storage Unit Type | None |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Series/List | CMG2 |
