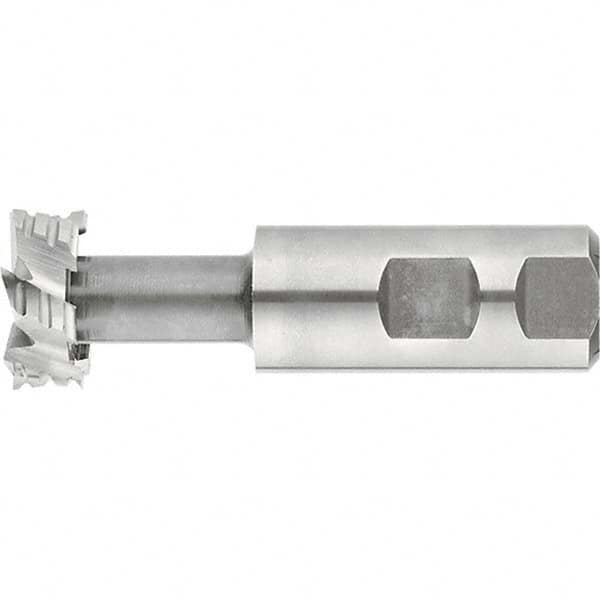

Keo - 1" Diam, 5/16" Wide, High Speed Steel T-Slot Cutter
Item #: 12209458
Brand: Keo
Model #: 964-000-068
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Width (Inch) | 5/16 |
| Neck Diameter (Inch) | 1/2 |
| Neck Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 3-5/16 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Number of Teeth | 8 |
| Bolt Size (Inch) | 1/2 |
| Tooth Configuration | Staggered |
| Material Grade | M7 |
| Weldon Flat | Yes |
