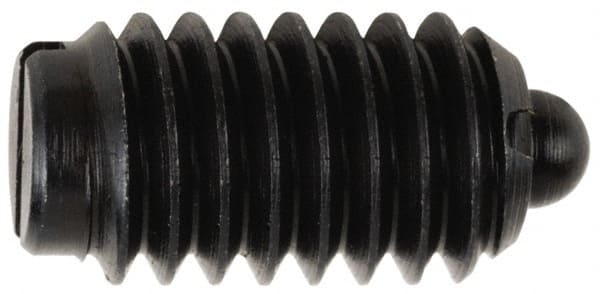

TE-CO - 3/8-16, 5/8" Thread Length, 0.11" Plunger Projection, Stainless Steel Threaded Spring Plunger
Item #: 06860845
Brand: TE-CO
Model #: 53405
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Inch) | 5/8 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1860 |
| Plunger Projection (Decimal Inch) | 0.1100 |
| Locking Element | Yes |
| Body Length (Inch) | 5/8 |
| Plunger Length Type | Short |
| Plunger Length (Inch) | 5/8 |
| Final End Force (Lb.) | 18.50 |
| Initial End Force (Lb.) | 4.50 |
| Finish/Coating | Black Oxide |
| Tolerance (Decimal Inch) | +0.0000 |
