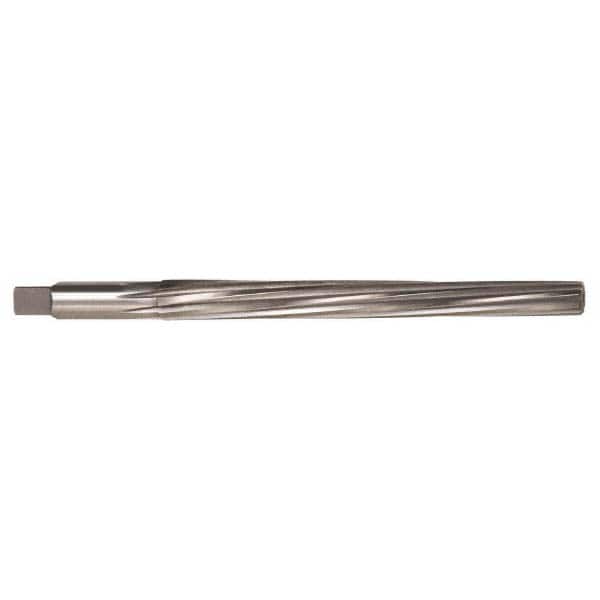

Alvord Polk - #9 Pin, 0.6066" Diam, 0.4805" Small End, 9/16" Diam Straight Shank, 6-1/16" Flute, Taper Pin Reamer
Item #: 70698667
Brand: Alvord Polk
Model #: 02815
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #9 |
| Small End Diameter (Decimal Inch) | 0.4805 |
| Reamer Diameter (Decimal Inch) | 0.6066 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (mm) | 211 |
| Overall Length (Inch) | 8.3120 |
| Flute Length (mm) | 154 |
| Flute Length (Inch) | 6.0620 |
| Number of Flutes | 8 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
