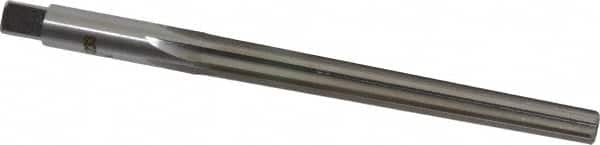

Alvord Polk - #5 Pin, 0.2994" Diam, 0.2409" Small End, 5/16" Diam Straight Shank, 2-13/16" Flute, Taper Pin Reamer
Item #: 70698980
Brand: Alvord Polk
Model #: 00811
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #5 |
| Small End Diameter (Decimal Inch) | 0.2409 |
| Reamer Diameter (Decimal Inch) | 0.2994 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (mm) | 110 |
| Overall Length (Inch) | 4.3120 |
| Flute Length (mm) | 71 |
| Flute Length (Inch) | 2.8120 |
| Number of Flutes | 6 |
| Shank Diameter (mm) | 7.94 |
| Shank Diameter (Inch) | 5/16 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
