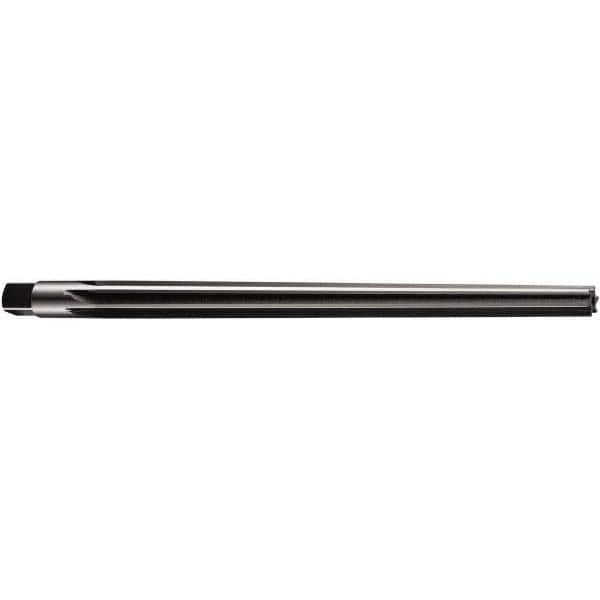

DORMER - 8mm Pin, 0.4255" Diam, 0.3113" Small End, 10.5mm Diam Straight Shank, 145mm Flute, Taper Pin Reamer
Item #: 65642019
Brand: DORMER
Model #: 0182567
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 8.00 |
| Small End Diameter (mm) | 7.90 |
| Small End Diameter (Decimal Inch) | 0.3113 |
| Reamer Diameter (mm) | 10.80 |
| Reamer Diameter (Decimal Inch) | 0.4255 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (mm) | 180 |
| Flute Length (mm) | 145 |
| Number of Flutes | 6 |
| Shank Diameter (mm) | 10.50 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright/Oxide |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
