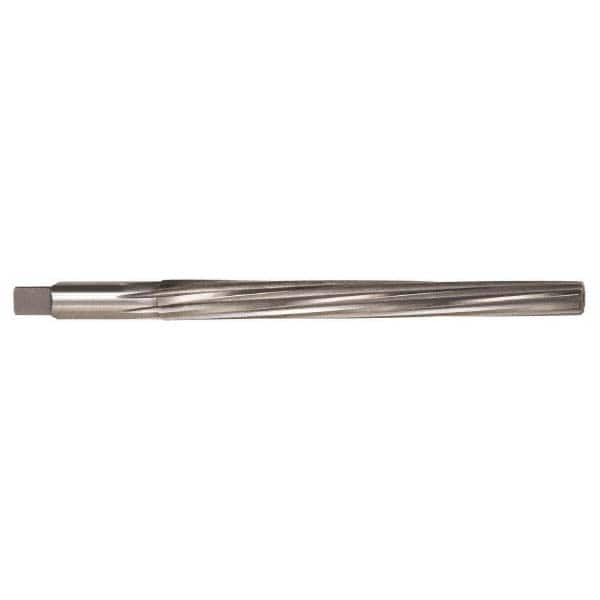

Alvord Polk - #10 Pin, 0.7216" Diam, 0.5799" Small End, 5/8" Diam Straight Shank, 6-13/16" Flute, Taper Pin Reamer
Item #: 70698659
Brand: Alvord Polk
Model #: 02816
Features and Benefits
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #10 |
| Small End Diameter (Decimal Inch) | 0.5799 |
| Reamer Diameter (Decimal Inch) | 0.7216 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (mm) | 237 |
| Overall Length (Inch) | 9.3120 |
| Flute Length (mm) | 173 |
| Flute Length (Inch) | 6.8120 |
| Number of Flutes | 8 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
