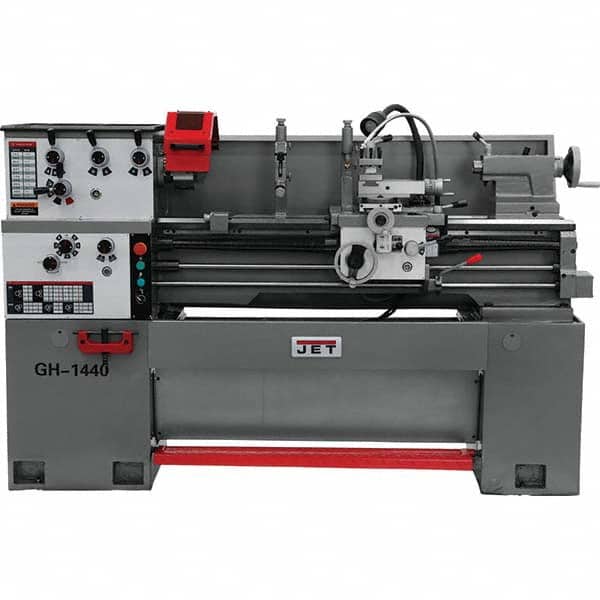

Jet - Bench, Engine & Toolroom Lathes Machine Type: Spindle Bore Spindle Speed Control: Geared Head
Item #: 13341219
Brand: Jet
Model #: 323387
Features and Benefits
Geared head lathes generally feature drive belt(s) from the motor to the headstock. Speed changes are made by shifting gear lever combinations in the headstock.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
Product Specifications
Bench, Engine & Toolroom Lathes; Machine Type: Spindle Bore ; Spindle Speed Control: Geared Head ; Phase: 1 ; Voltage: 230 ; Horsepower (HP): 3 ; Swing (Inch): 14
| Machine Type | Spindle Bore |
| Spindle Speed Control | Geared Head |
| Phase | 1 |
| Voltage | 230 |
| Horsepower (HP) | 3 |
| Swing (Inch) | 14 |
| Distance Between Centers (Inch) | 40 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Spindle Taper Size (No Sleeve) | 3MT |
| Spindle Taper Size | 3MT |
| Spindle Taper Size (Sleeve) | 3MT |
| Swing Over Gap (Inch) | 20 |
| Swing Over Cross Slide (Decimal Inch) | 8.2000 |
| Gap Length (Decimal Inch) | 9.3750 |
| Bed Width (Decimal Inch) | 10.2000 |
| Spindle Nose Designation | MT |
| Minimum Spindle Speed (RPM) | 40.00 |
| Maximum Spindle Speed (RPM) | 1800.00 |
| Number of Inch Threads | 40 |
| Maximum Threads Per Inch | 112 |
| Number of Metric Threads | 23 |
| Minimum Threads Per Inch | 4 |
| Cross Slide Travel (Inch) | 6-3/8 |
| Tailstock Taper Size | 3MT |
| Includes 1 | Newall DP500 DRO With Collet Closer |
