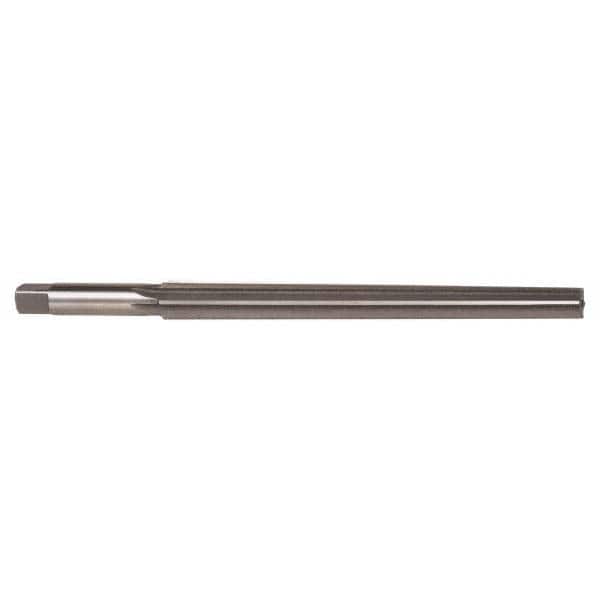

Alvord Polk - #10 Pin, 0.7216" Diam, 0.5799" Small End, 9/16" Diam Straight Shank, 6-1/16" Flute, Taper Pin Reamer
Item #: 70698949
Brand: Alvord Polk
Model #: 00816
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #10 |
| Small End Diameter (Decimal Inch) | 0.5799 |
| Reamer Diameter (Decimal Inch) | 0.7216 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (mm) | 211 |
| Overall Length (Inch) | 8.3120 |
| Flute Length (mm) | 154 |
| Flute Length (Inch) | 6.0620 |
| Number of Flutes | 8 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
