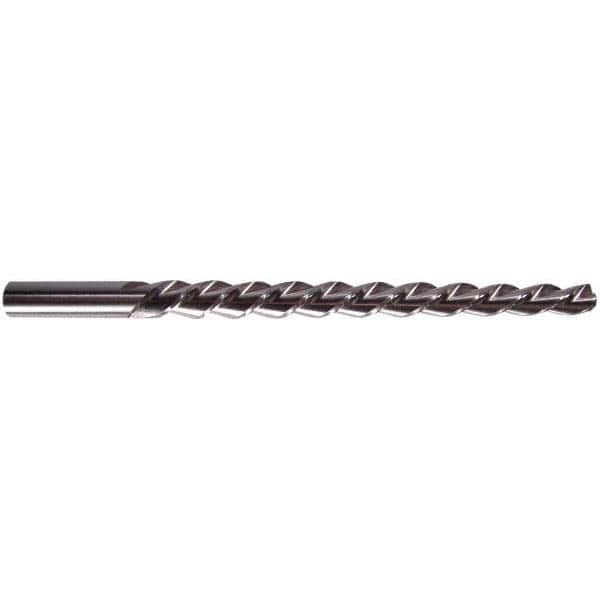

Alvord Polk - #5/0 Pin, 0.0966" Diam, 0.0719" Small End, 0.1094" Diam Straight Shank, 1-3/16" Flute, Taper Pin Reamer
Item #: 70698428
Brand: Alvord Polk
Model #: 03802
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #5/0 |
| Small End Diameter (Decimal Inch) | 0.0719 |
| Reamer Diameter (Decimal Inch) | 0.0966 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (mm) | 56 |
| Overall Length (Inch) | 2.1870 |
| Flute Length (mm) | 30 |
| Flute Length (Inch) | 1.1870 |
| Number of Flutes | 3 |
| Shank Diameter (mm) | 2.78 |
| Shank Diameter (Inch) | 0.1094 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Mild Steel |
