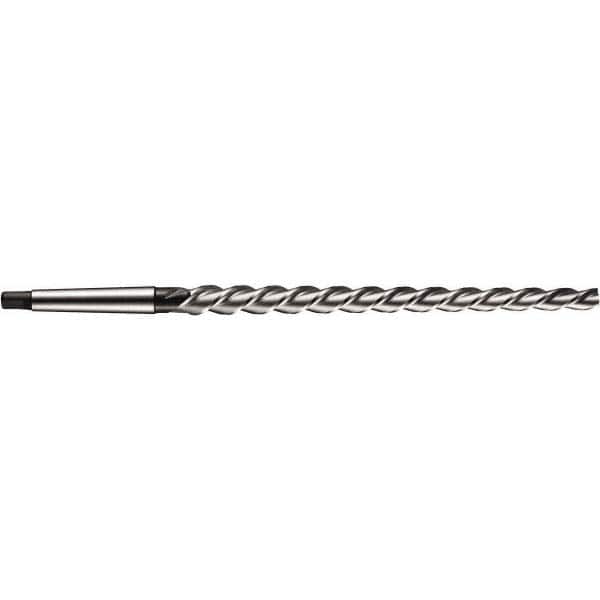

DORMER - 12mm Pin, 0.6304" Diam, 0.4649" Small End, Morse Taper Shank, 210mm Flute, Taper Pin Reamer
Item #: 65641623
Brand: DORMER
Model #: 0053980
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (mm) | 12.00 |
| Small End Diameter (mm) | 11.80 |
| Small End Diameter (Decimal Inch) | 0.4649 |
| Reamer Diameter (mm) | 16.00 |
| Reamer Diameter (Decimal Inch) | 0.6304 |
| Flute Type | Helical |
| Shank Type | Morse Taper |
| Overall Length (mm) | 315 |
| Flute Length (mm) | 210 |
| Number of Flutes | 3 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | Cobalt |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Carbon Steel; Cermets; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys; Stainless Steel; Steel; Structural Steel; Thermoplastics; Titanium; Titanium Alloys |
