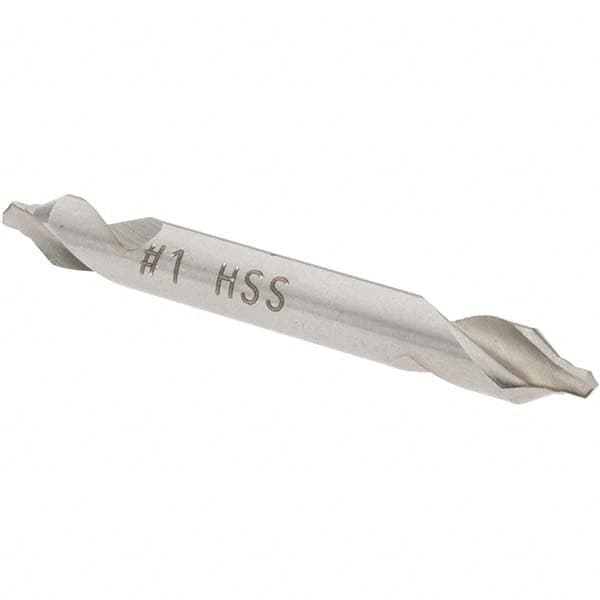

Magafor - 5 Piece, #1-W to 5-W, 1/8 to 7/16" Body Diam, 3/64 to 3/16" Point Diam, Bulge Edge, High Speed Steel Combo Drill & Countersink Set
Item #: 76260843
Brand: Magafor
Model #: 81145000000
| Product Specifications | |
|---|---|
| Minimum Trade Size | #1-W |
| Maximum Trade Size | #5-W |
| Minimum Body Diameter (Inch) | 1/8 |
| Maximum Body Diameter (Inch) | 7/16 |
| Minimum Drill Point Diameter (Inch) | 3/64 |
| Maximum Drill Point Diameter (Inch) | 3/16 |
| Minimum Drill Point Length (Decimal Inch) | 0.0670 |
| Maximum Drill Point Length (Decimal Inch) | 0.2560 |
| Minimum Overall Length (Inch) | 1-1/4 |
| Maximum Overall Length (Inch) | 2-3/4 |
| End Type | Double |
| Cutting Edge Style | Bulge |
| Combination Drill and Countersink Material | High Speed Steel |
| Body Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 7/16 |
| Drill Point Diameter (Inch) | 3/64; 5/64; 7/64; 1/8; 3/16 |
| Drill Point Length (Decimal Inch) | 0.0670; 0.1060; 0.1540; 0.1750; 0.2560 |
| Overall Length (Inch) | 1-1/4; 1-7/8; 2; 2-1/8; 2-3/4 |
| Included Angle | 60 |
| Drill Point Angle | 118 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Countersink Application | Countersinking |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Set Includes | (5) Combination Drill and Countersinks |
| Number of Pieces | 5 |
| Storage Unit Type | Case |
| Series/List | 145 |
