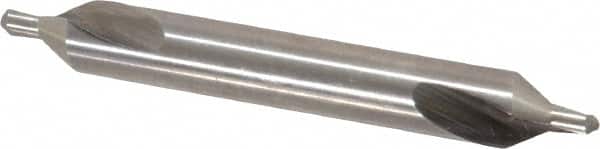

Cleveland - #3 Plain Cut 60° Incl Angle High Speed Steel Combo Drill & Countersink
Item #: 63769335
Brand: Cleveland
Model #: C46265
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | High Speed Steel |
| Included Angle | 60 |
| Trade Size | #3 |
| Body Diameter (mm) | 6.35 |
| Body Diameter (Inch) | 1/4 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 50.80 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Drill Point Diameter (Inch) | 7/64 |
| Finish/Coating | Bright |
| End Type | Double |
| Cutting Direction | Right Hand |
| Cutting Edge Style | Plain |
| Drill Point Length (Inch) | 7/64 |
| Drill Point Angle | 118 |
| Countersink Application | Countersinking; Drilling |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Alloy Tool Steel; Aluminum; Carbon Steel; Cast Iron |
