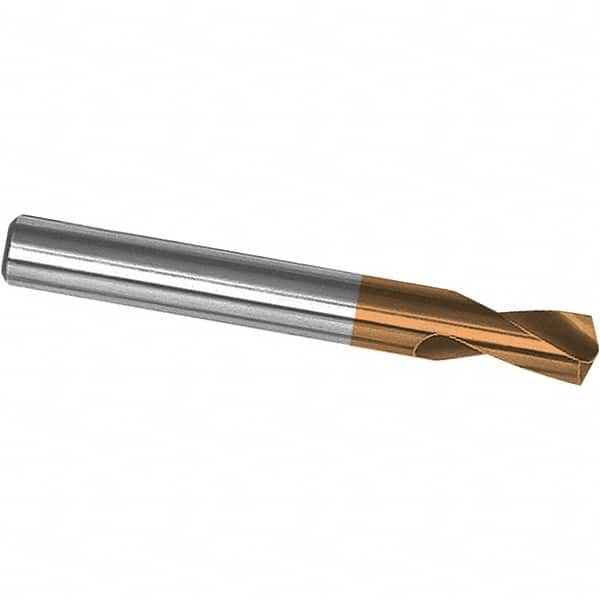

Magafor - 3/16" Body Diam, 120°, 2-3/8" OAL, Cobalt Spotting Drill
Item #: 95395190
Brand: Magafor
Model #: 80099604760
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature than TiN. As a result, it is better for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 4.76 |
| Body Diameter (Inch) | 3/16 |
| Drill Point Angle | 120 |
| Spotting Drill Material | Cobalt |
| Spotting Drill Finish/Coating | TiAlN |
| Overall Length (mm) | 60.00 |
| Overall Length (Inch) | 2-3/8 |
| Flute Length (mm) | 15.00 |
| Flute Length (Decimal Inch) | 0.6000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (mm) | 4.7600 |
| Drill Bit Grade | High Performance |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spot Drilling |
| Material Application | Hard Alloy |
| Series/List | 0996 |
