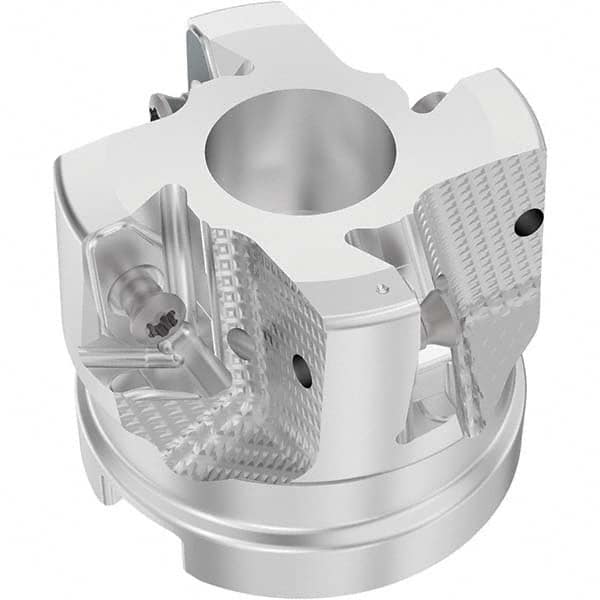

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2 Cutting Diameter (Decimal Inch): 2.0000
Item #: 18990747
Brand: Seco
Model #: 03290250
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 3/4 ; Lead Angle: 90 ; Overall Height (mm): 40.00 ; Insert Compatibility: ZOMX16
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | ZOMX16 |
| Series | R220.64 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R220.64 |
| Number of Flutes | 4 |
| Rake | Negative |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 8.15 |
| Maximum RPM | 9000 |
| Cutting Edge Length (Decimal Inch) | 0.5910 |
| Minimum Insert Radius (Decimal Inch) | 0.0313 |
| Complete Insert Compatibility | ZOMX16 |
| Toolholder Material | Steel |
