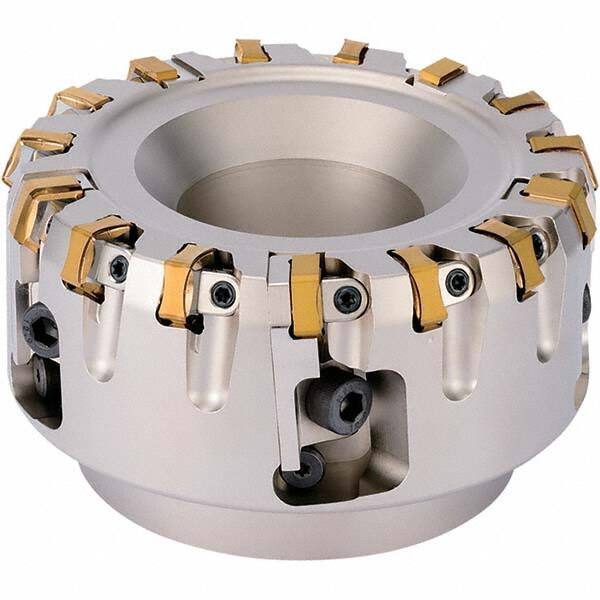

Kyocera - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 125.00 Arbor Hole Diameter (Inch): 1-1/2
Item #: 10621944
Brand: Kyocera
Model #: 8860921
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 125.00 ; Arbor Hole Diameter (Inch): 1-1/2 ; Lead Angle: 70 ; Overall Height (mm): 75.00 ; Insert Compatibility: PNMG11; PNEG11; PNEA11 ; Series: MFK
| Cutting Diameter (mm) | 125.00 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 70 |
| Overall Height (mm) | 75.00 |
| Insert Compatibility | PNMG11; PNEG11; PNEA11 |
| Series | MFK |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Clamp |
| Number of Flutes | 15 |
| Cutting Rake Angle | 15 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 100.00 |
| Keyway Width (mm) | 15.88 |
| Keyway Depth (mm) | 10.00 |
| Number of Adjustable Pockets | 5 |
| Pitch | Fine |
| ISO Number | MFK125R-11-15T-SF |
| Toolholder Material | Steel |
