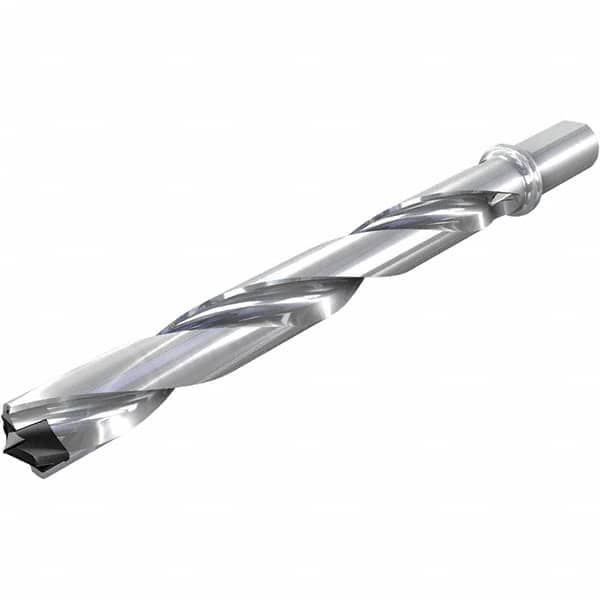

Iscar - 37 to 37.9mm, 8xD, 296mm Max Depth, 32mm Shank Diam, 296mm Flute, 398.6mm OAL, Replaceable-Tip Drill
Item #: 46655825
Brand: Iscar
Model #: 3260024
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 37.00 |
| Maximum Drill Diameter (mm) | 37.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 296.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 37 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 8.04 |
| Flute Length (mm) | 296.00 |
| Body Length (mm) | 338.60 |
| Overall Length (mm) | 398.60 |
| Shank Length (mm) | 60.00 |
