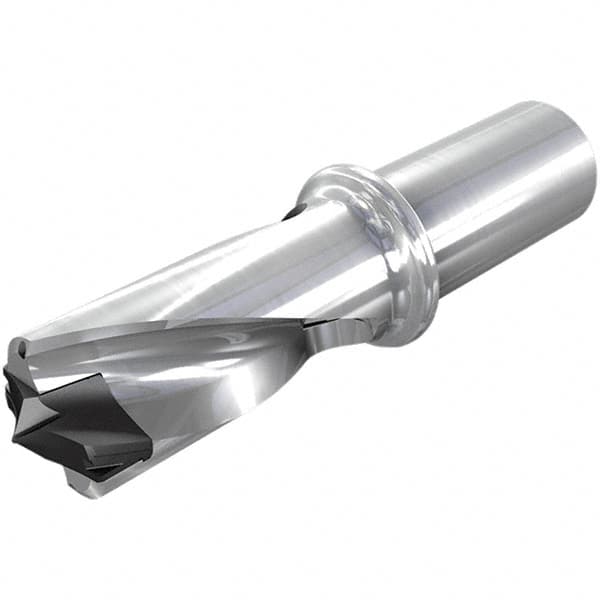

Iscar - 1.417 to 1.453", 8xD, 11.33" Max Depth, 1-1/4" Shank Diam, 1.453" Flute, 15.33" OAL, Replaceable-Tip Drill
Item #: 35025543
Brand: Iscar
Model #: 3203614
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.4170 |
| Maximum Drill Diameter (Decimal Inch) | 1.4530 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 11.3300 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 36 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.3210 |
| Flute Length (Decimal Inch) | 1.4530 |
| Body Length (Decimal Inch) | 12.9700 |
| Overall Length (Decimal Inch) | 15.3300 |
| Shank Length (Decimal Inch) | 2.3600 |
