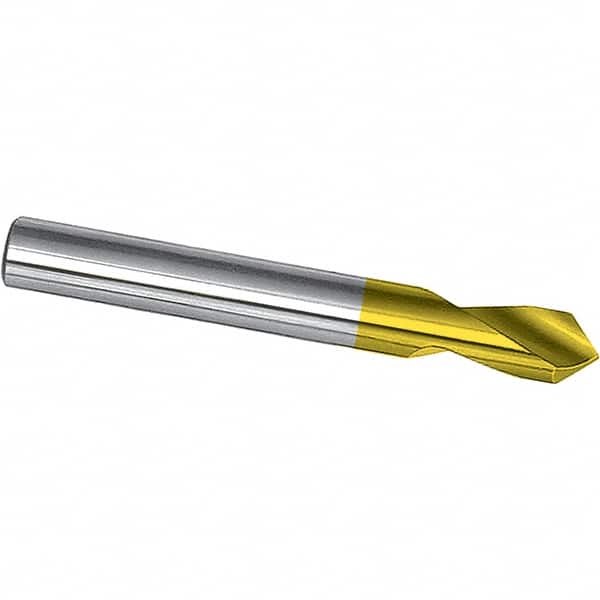

Magafor - 1" Body Diam, 90°, 5-3/8" OAL, Cobalt Spotting Drill
Item #: 19912138
Brand: Magafor
Model #: 80089525400
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 25.40 |
| Body Diameter (Inch) | 1 |
| Body Diameter (Decimal Inch) | 1.0000 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Cobalt |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (mm) | 138.00 |
| Overall Length (Inch) | 5-3/8 |
| Flute Length (mm) | 45.00 |
| Flute Length (Inch) | 1-3/4 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.4000 |
| Drill Bit Grade | High Performance |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Chamfering; Spot Drilling |
| Series/List | 0895 |
