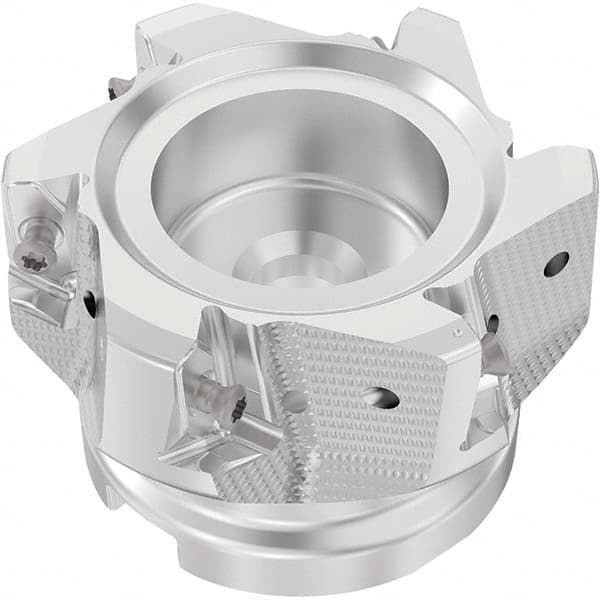

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 80.00 Cutting Diameter (Decimal Inch): 3.1497
Item #: 18990853
Brand: Seco
Model #: 03290243
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Decimal Inch): 3.1497 ; Arbor Hole Diameter (mm): 27.00 ; Lead Angle: 90 ; Overall Height (mm): 50.00 ; Insert Compatibility: ZOMX16
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1497 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | ZOMX16 |
| Series | R220.64 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R220.64 |
| Number of Flutes | 6 |
| Rake | Negative |
| Hub Diameter (mm) | 62.00 |
| Keyway Width (mm) | 12.40 |
| Maximum RPM | 7200 |
| Cutting Edge Length (Decimal Inch) | 0.5910 |
| Minimum Insert Radius (Decimal Inch) | 0.0313 |
| Complete Insert Compatibility | ZOMX16 |
| Toolholder Material | Steel |
