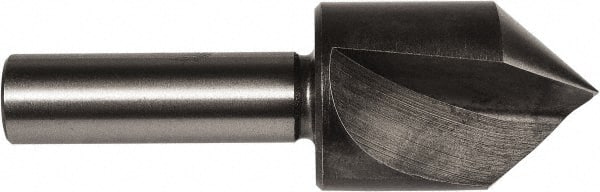

Union Butterfield - 1" Head Diam, 1/2" Shank Diam, 1 Flute 82° High Speed Steel Countersink
Item #: 66386319
Brand: Union Butterfield
Model #: 4710802
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 1 |
| Included Angle | 82 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-13/16 |
| Overall Length (Decimal Inch) | 2.8125 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| PSC Code | 5133 |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloy |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloy |
