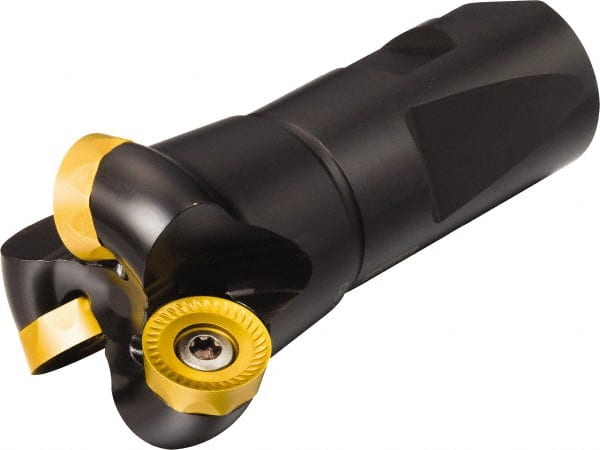

Sandvik Coromant - 3 Inserts, 1" Cutter Diam, 6.35mm Max Depth of Cut, Indexable High-Feed Face Mill - 6.2992" High, RA200..MNxx Toolholder, RCKT 13 04 00 Inserts, Series CoroMill 200
Item #: 58146390
Brand: Sandvik Coromant
Model #: 5737647
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (mm) | 25.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Shank Diameter (Decimal Inch) | 38.1000 |
| Overall Height (Decimal Inch) | 6.2992 |
| Series | CoroMill 200 |
| Cutter Style | RA200..MNxx |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | RCKT 13 04 00 |
| Cutting Direction | Right Hand |
| Maximum RPM | 26300 |
| Maximum Body Diameter (Decimal Inch) | 1.5000 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 13 04 00 |
| Manufacturers Catalog Number | 5737647 |
