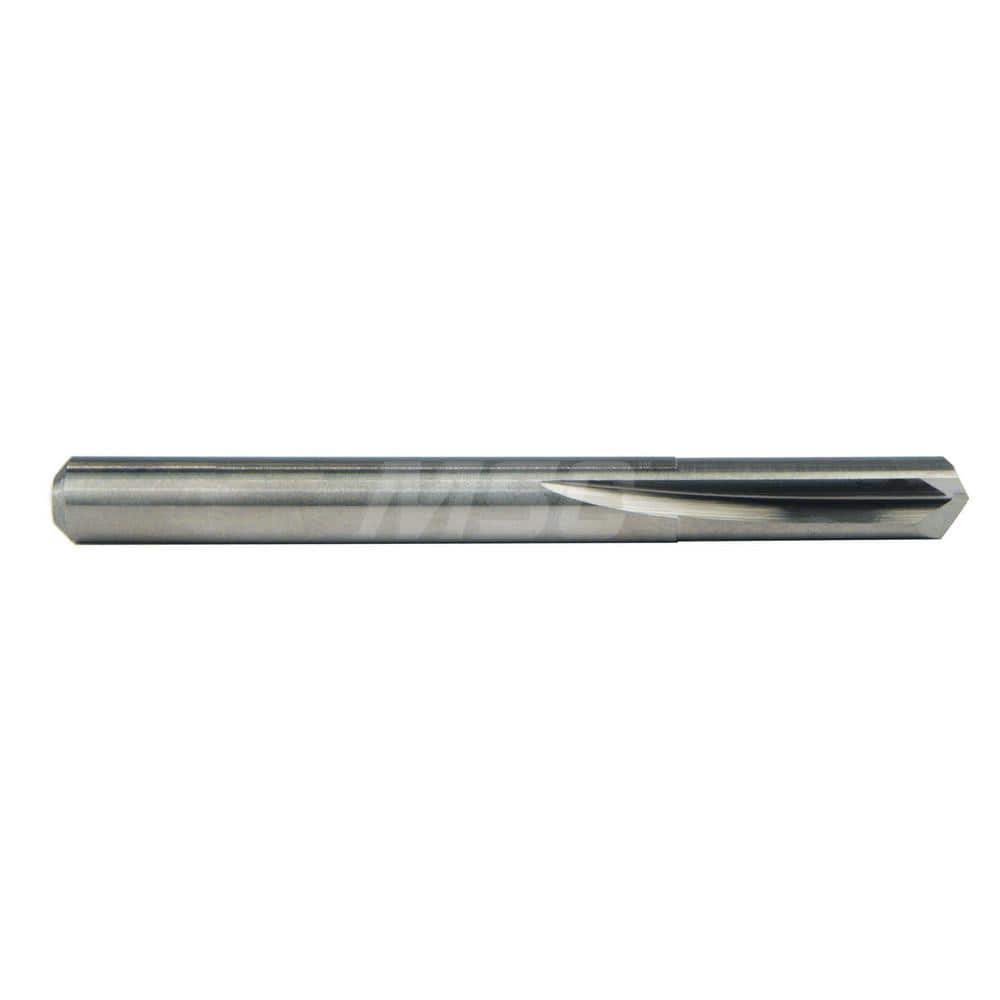

Die Drill Bit: 17/32″ Dia, 135 °, Solid Carbide ALtima Finish, 1-1/8″ Flute Length, 3-1/2″ OAL
Item #: 58223447
Brand: M.A. Ford?
Model #: 20053120A
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 17/32 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 1.1250 |
| Drill Point Angle | 135 |
| Overall Length (Inch) | 3-1/2 |
| Shank Diameter (Decimal Inch) | 0.5310 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.5312 |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | 200 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Tool Application | Holemaking |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.000 to -0.013 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Secondary Workpiece Material | Medium Carbon Steel; Austenitic Stainless Steel; High Temperature Alloys; Aluminum; Cast Iron; Alloy Tool Steel; Low Carbon Steel; Hardened Steel |
| Standards | DIN |
| Shank Length (Inch) | 2-3/8 |
| Shank Length (Decimal Inch) | 2.3750 |
| Flute By Diameter Ratio | 3xD |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
