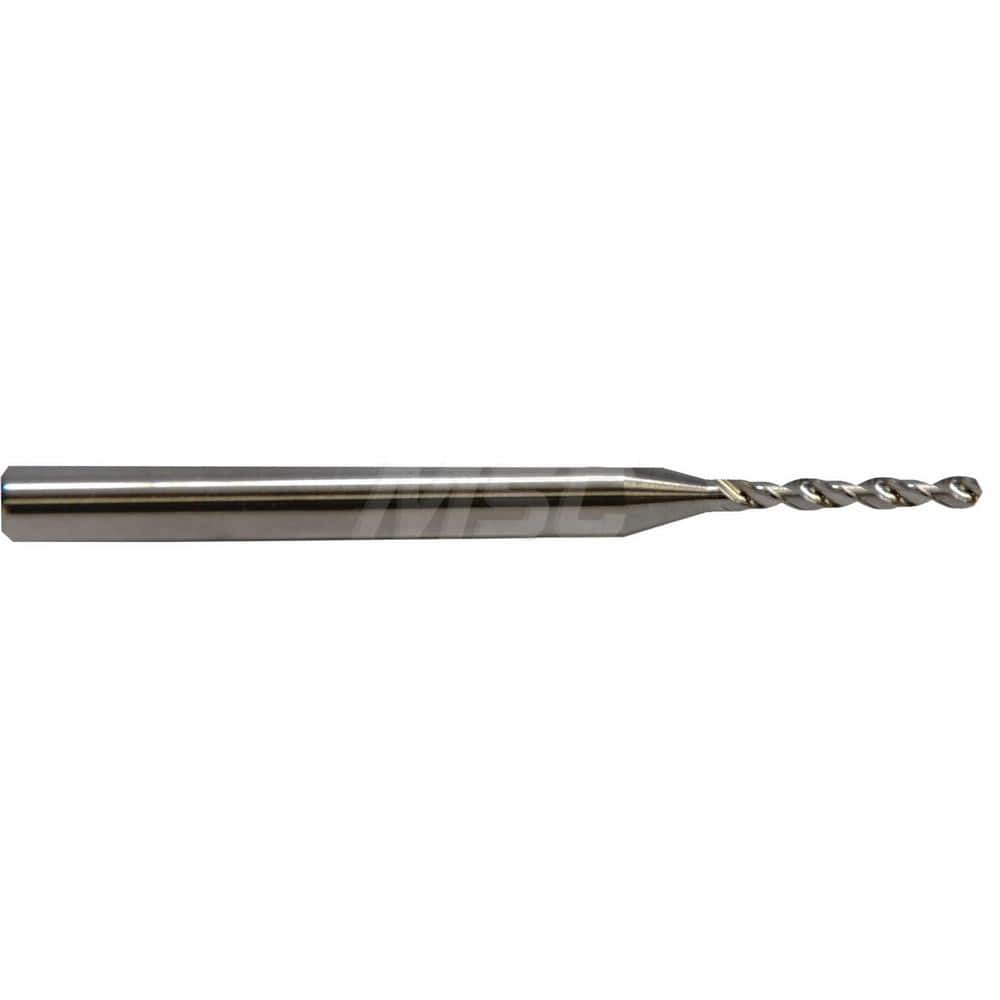

Micro Drill Bit: 0.0157″ Dia, 130 °, Solid Carbide Bright/Uncoated, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 302
Item #: 58234030
Brand: M.A. Ford?
Model #: 30201571
Product Specifications
| Drill Bit Size (mm) | 0.40 |
| Drill Bit Size (Decimal Inch) | 0.0157 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 6.35 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 130 |
| Cutting Direction | Right Hand |
| Series | 302 |
| Overall Length (mm) | 38.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Hardened Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Secondary Workpiece Material | Alloy Steel; Aluminum; Non-Ferrous Metals; Stainless Steel; Cast Iron; Carbon Steel; Tool Steel; Special Alloy |
| Standards | ISO 9001:2015 |
| Shank Diameter (mm) | 3.17 |
| Spiral Type | Fast |
