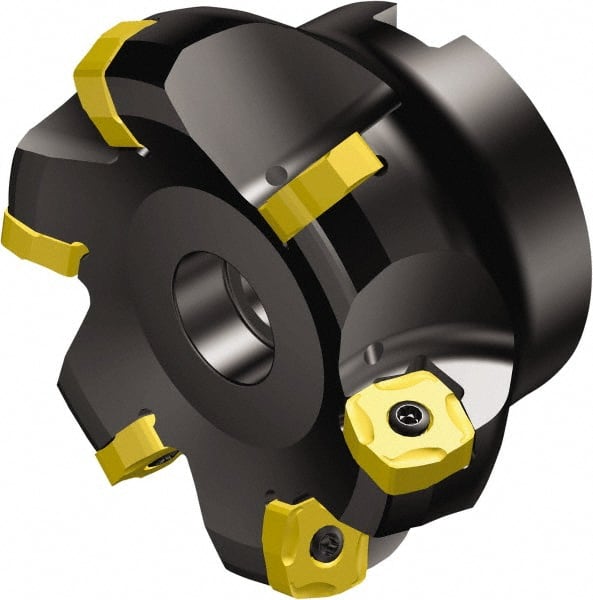

Sandvik Coromant - 2" Cut Diam, 3/4" Arbor Hole, 0.2362" Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 5 Inserts, R365-1505ZNE Insert, Right Hand Cut, Through Coolant, Series CoroMill 365
Item #: 58268939
Brand: Sandvik Coromant
Model #: 5740337
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 65 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 5 |
| Cutter Style | R/LA365..Rxx-S |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum RPM | 15700 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
