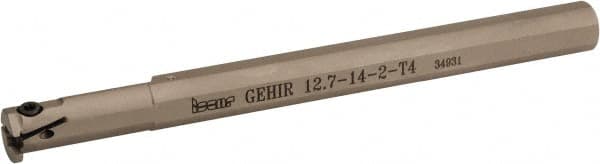

Iscar - GEHI, Right Hand, 0.075 to 0.095" Groove Width, Indexable Grooving Tool Holder - GEMI.., GEPI.. Insert Compatibility, 6" OAL, Through Coolant
Item #: 58373127
Brand: Iscar
Model #: 2801775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Maximum Groove Width (Decimal Inch) | 0.0950 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GEHI |
| Insert Compatibility | GEMI..; GEPI.. |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Maximum Bore Depth (Decimal Inch) | 0.1570 |
| Center to Cutting Edge (Decimal Inch) | 0.4100 |
| Manufacturers Catalog Number | GEHIR 12.7-14-2-T4 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GEPI 1.96-0.15; GEPI 1.96-0.10; GEPI 2.00-1.00; GEPI 2.00-0.10; GEPI 2.22-0.15; GEPI 2.22-0.10 |
| Minimum Bore Diameter (Decimal Inch) | 0.5510 |
| Shank Diameter (Decimal Inch) | 0.5000 |
