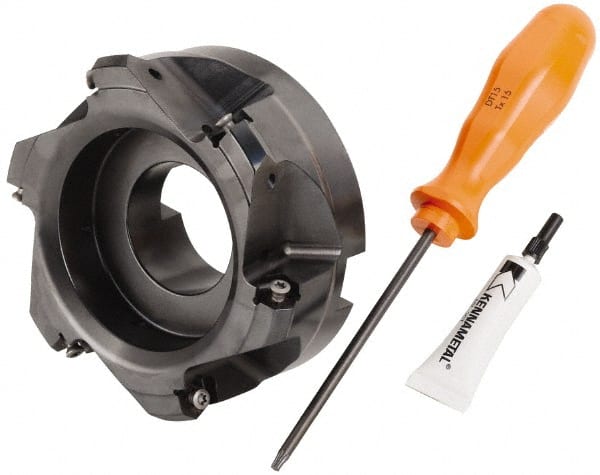

Kennametal - 4" Cut Diam, 1-1/2" Arbor Hole, 4.42mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 6 Inserts, HNGJ 0604... Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Dodeka Mini HD
Item #: 58377417
Brand: Kennametal
Model #: 4136397
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 107.76 |
| Cutting Diameter (Decimal Inch) | 4.2425 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini HD |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.42 |
| Maximum Depth of Cut (Decimal Inch) | 0.1740 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KSHRHD |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.6614 |
| Hub Diameter (mm) | 93.00 |
| Maximum Body Diameter (Decimal Inch) | 4.1400 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
