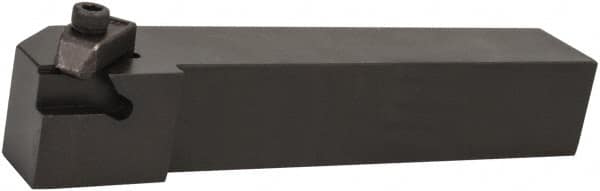

Hertel - IS, External, Right Hand, 3.55mm Max Depth of Cut, 0.15" Min Groove Width, Indexable Grooving Tool Holder - I_2R Insert Compatibility, 1/2" Shank Height, 1/2" Shank Width, 3-1/2" OAL
Item #: 58394792
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Maximum Depth of Cut (mm) | 3.55 |
| Minimum Groove Width (Decimal Inch) | 0.1500 |
| Overall Length (Decimal Inch) | 3.5000 |
| Toolholder Style | IS |
| Insert Compatibility | I_2R |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Series | HertelNotch |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Number of Inserts Used on Toolholder | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 3-1/2 |
| Shank Length (Decimal Inch) | 3.5000 |
| Toolholder Material | Steel |
