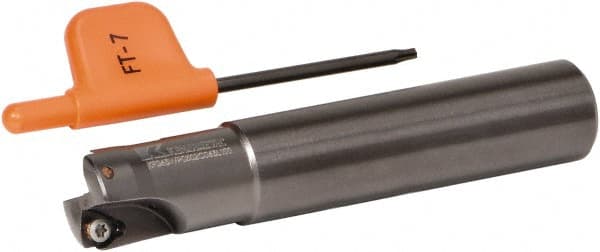

Kennametal - 16mm Cut Diam, 0.04" Max Depth, 16mm Shank Diam, Cylindrical Shank Indexable High-Feed Helical End Mill - Screw Holding Method, WP..0302.. Insert, Through Coolant
Item #: 58441999
Brand: Kennametal
Model #: 4138432
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Number of Cutter Inserts | 2 |
| Insert Style | WP..0302.. |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3290 |
| Maximum RPM | 15900 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 5.9050 |
