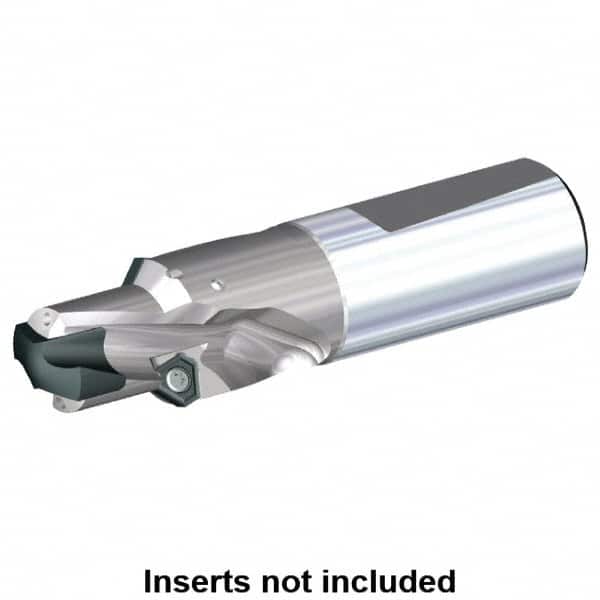

Kennametal - 14.51 to 15.87mm Diam, 1xD, 15.8mm Max Depth, 20mm Shank Diam, 109.34mm OAL, Replaceable Tip Drill - KSEM1451, TPGX 0902ZPR Insert, A Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 58442286
Brand: Kennametal
Model #: 1993392
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 14.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.5713 |
| Maximum Drill Diameter (mm) | 15.87 |
| Maximum Drill Diameter (Decimal Inch) | 0.6249 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.6220 |
| Maximum Drill Depth (mm) | 15.80 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KSEM1451; TPGX 0902ZPR |
| Insert Seat Size | A |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.32 |
| Tip Length (Decimal Inch) | 0.0912 |
| Overall Length (mm) | 109.34 |
| Overall Length (Decimal Inch) | 4.3047 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
