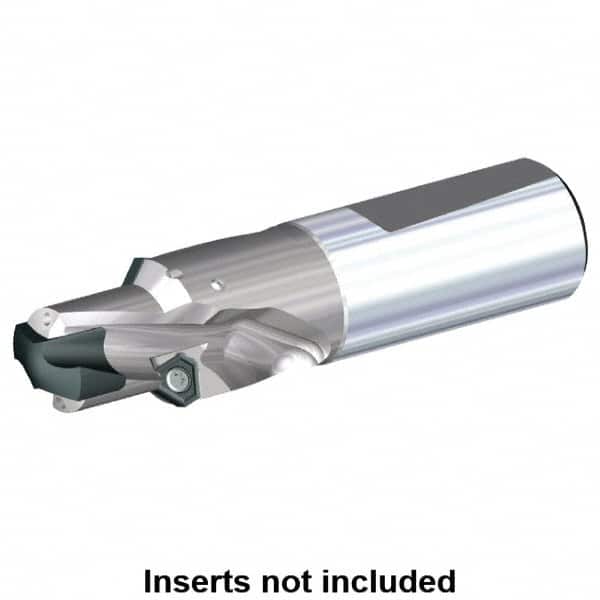

Kennametal - 32.01 to 36mm Diam, 1xD, 36mm Max Depth, 50mm Shank Diam, 155.17mm OAL, Replaceable Tip Drill - KSEM3201, TPGX 1603ZPR Insert, 9 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 58442294
Brand: Kennametal
Model #: 1993408
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 32.01 |
| Minimum Drill Diameter (Decimal Inch) | 1.2602 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4173 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.4173 |
| Maximum Drill Depth (mm) | 36.00 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Style | KSEM3201; TPGX 1603ZPR |
| Insert Seat Size | 9 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.93 |
| Tip Length (Decimal Inch) | 0.1939 |
| Body Length (mm) | 87.17 |
| Body Length (Decimal Inch) | 3.4318 |
| Overall Length (mm) | 155.17 |
| Overall Length (Decimal Inch) | 6.1091 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
