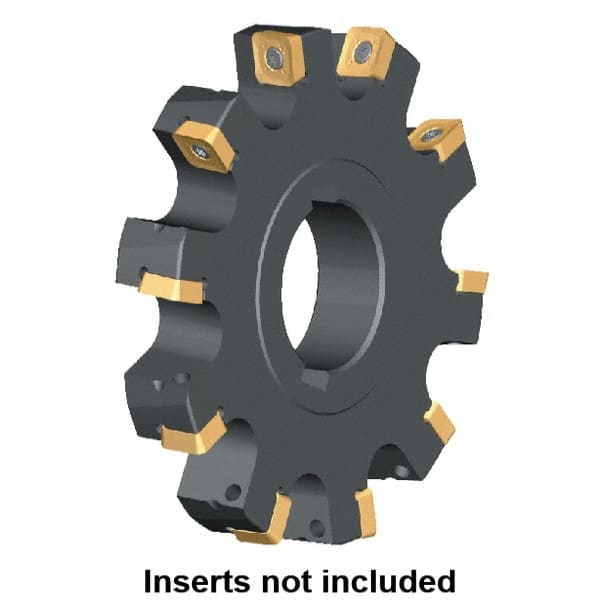

Kennametal - Arbor Hole Connection, 0.3587" Cutting Width, 2.571" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 13 Tooth Indexable Slotting Cutter - KSSS Toolholder, SP.T 10T3.. Insert, Right Hand Cutting Direction
Item #: 58442344
Brand: Kennametal
Model #: 3330977
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 9.11 |
| Cutting Width (Decimal Inch) | 0.3587 |
| Maximum Depth of Cut (mm) | 65.30 |
| Maximum Depth of Cut (Decimal Inch) | 2.5710 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 13 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12200 |
| Minimum Cutting Width (Decimal Inch) | 0.9110 |
| Hub Diameter (mm) | 68.75 |
| Hub Diameter (Decimal Inch) | 2.7067 |
| Cutter Body Width (mm) | 16.00 |
| Cutter Body Width (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R. |
