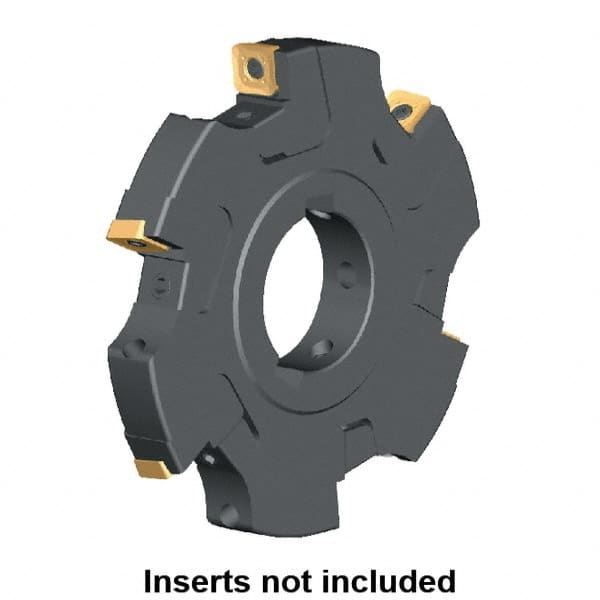

Kennametal - Arbor Hole Connection, 0.461" Cutting Width, 2.0276" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 10 Tooth Indexable Slotting Cutter - KSSM Toolholder, SD.T 1204.. Insert, Left Hand Cutting Direction
Item #: 58442427
Brand: Kennametal
Model #: 2443463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 11.71 |
| Cutting Width (Decimal Inch) | 0.4610 |
| Maximum Depth of Cut (mm) | 51.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.0276 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 10 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SD.T 1204.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9150 |
| Hub Diameter (mm) | 54.75 |
| Hub Diameter (Decimal Inch) | 2.1555 |
| Cutter Body Width (mm) | 18.18 |
| Cutter Body Width (Decimal Inch) | 0.7157 |
| Complete Insert Compatibility1 | SD.T1204PD.L. |
