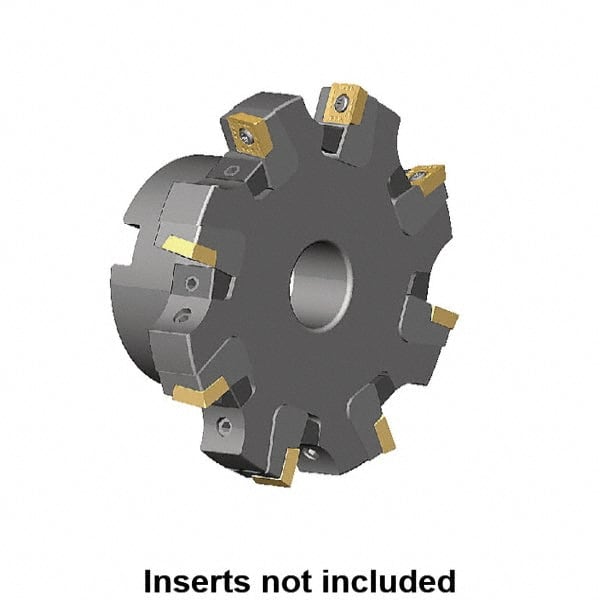

Kennametal - Shell Mount Connection, 0.359" Cutting Width, 1.2563" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 8 Tooth Indexable Slotting Cutter - KSSM Toolholder, SP.T 10T3.. Insert, Right Hand Cutting Direction
Item #: 58442484
Brand: Kennametal
Model #: 2443444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 9.12 |
| Cutting Width (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (mm) | 31.91 |
| Maximum Depth of Cut (Decimal Inch) | 1.2563 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 8 |
| Toolholder Style | KSSM |
| Series | KSSM |
| Insert Style | SP.T 10T3.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 15450 |
| Hub Diameter (mm) | 58.00 |
| Hub Diameter (Decimal Inch) | 2.2835 |
| Complete Insert Compatibility1 | SP.T 10T3PP.R. |
