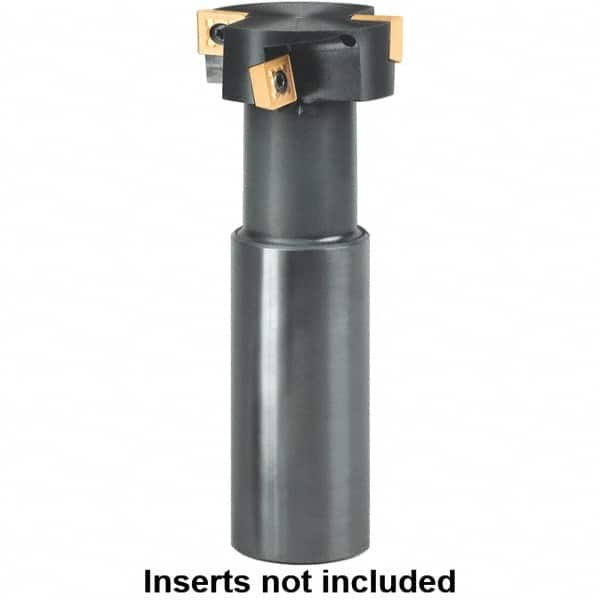

Kennametal - 1.5748" Cutting Diam x 0.7087" Cutting Width, 4 Cutter Inserts, 1.2598" Shank Diam, Indexable T-Slot Cutter - Insert Style SDMT 120408EGG, 5.1181" OAL, 2 Flutes
Item #: 58442732
Brand: Kennametal
Model #: 3577135
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Cutting Width (Decimal Inch) | 0.7087 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Toolholder Style | KTMS |
| Number of Cutter Inserts | 4 |
| Insert Style | SDMT 120408EGG |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.8071 |
| Shank Length (Decimal Inch) | 3.1496 |
| Overall Length (Decimal Inch) | 5.1181 |
| Maximum Reach (Decimal Inch) | 1.9685 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Complete Insert Compatibility | SDMT 120408EGG |
