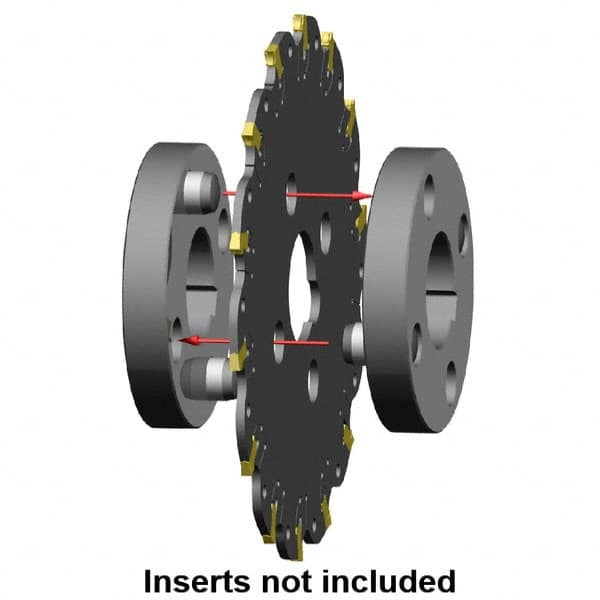

Kennametal - Arbor Hole Connection, 0.1575" Cutting Width, 1.5748" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 14 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 58442757
Brand: Kennametal
Model #: 1246150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 14 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 2000 |
| Minimum Cutting Width (Decimal Inch) | 0.1575 |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Cutter Body Width (mm) | 3.40 |
| Cutter Body Width (Decimal Inch) | 0.1339 |
| Complete Insert Compatibility1 | 3.90040.. |
