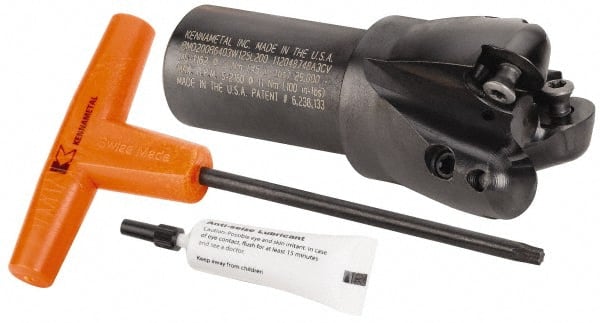

Kennametal - 2" Cutting Diam, 1-1/4" Shank Diam, 2" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RCG. 64.. Insert, BMD Toolholder
Item #: 58444381
Brand: Kennametal
Model #: 5135357
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RCG. 64.. |
| Toolholder Style | BMD |
| Series | KSRM |
| Overall Length (mm) | 108.71 |
| Overall Length (Decimal Inch) | 4.2800 |
| Insert Diameter (mm) | 19.05 |
| Insert Diameter (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Head Length (mm) | 50.80 |
| Head Length (Inch) | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
