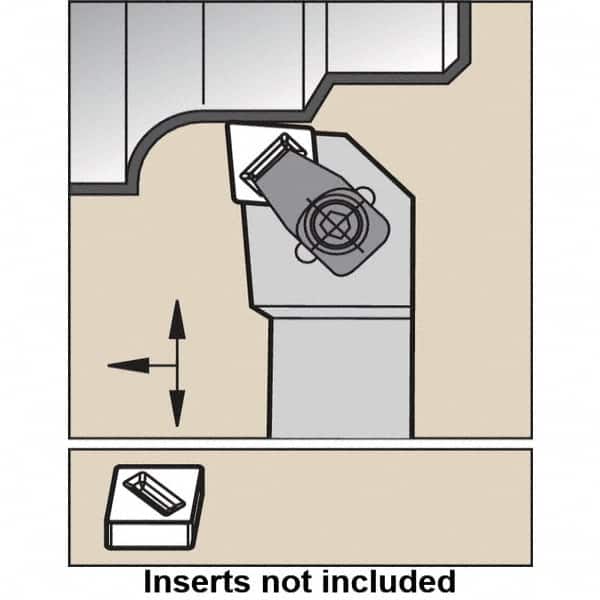

Kennametal - CCLN-MN, Left Hand Cut, -5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, CN..1207.. Insert Compatibility, Series MTS
Item #: 58445834
Brand: Kennametal
Model #: 1260016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CCLN-MN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | MTS |
| Lead Angle | -5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CN..1207.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
