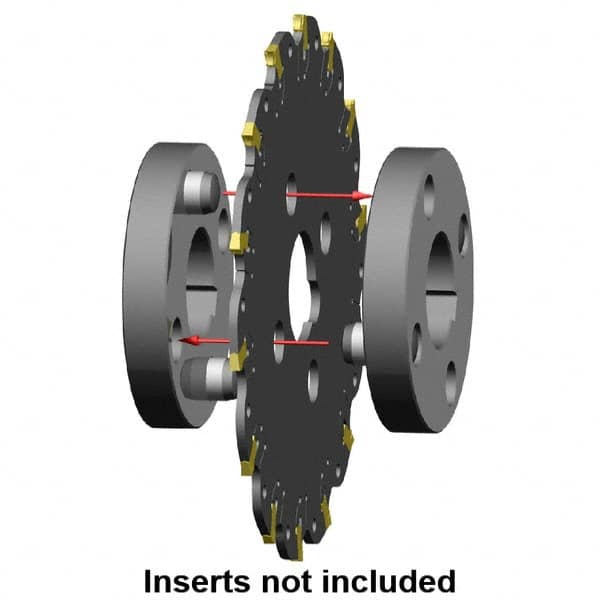

Kennametal - Arbor Hole Connection, 1/16" Cutting Width, 0.8268" Depth of Cut, 80mm Cutter Diam, 0.6299" Hole Diam, 7 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 58450644
Brand: Kennametal
Model #: 1246122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 16.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Number of Teeth | 7 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 4000 |
| Minimum Cutting Width (Decimal Inch) | 0.0630 |
| Hub Diameter (mm) | 38.00 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Cutter Body Width (mm) | 1.30 |
| Cutter Body Width (Decimal Inch) | 0.0512 |
| Complete Insert Compatibility1 | 3.90016.. |
