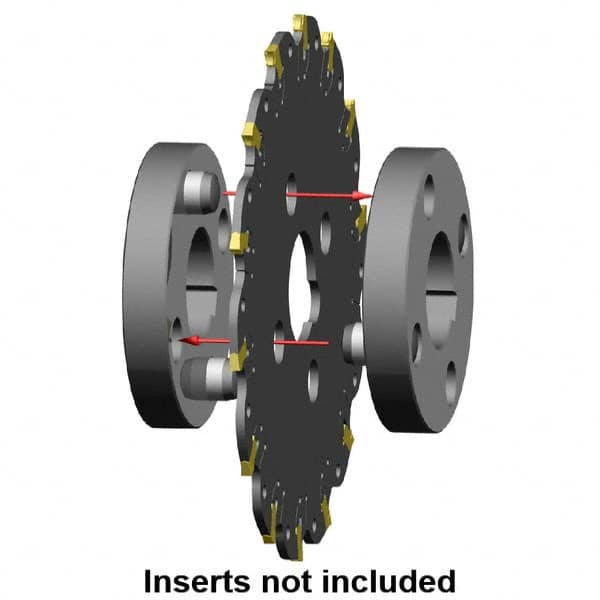

Kennametal - Arbor Hole Connection, 1/16" Cutting Width, 0.5906" Depth of Cut, 63mm Cutter Diam, 0.6299" Hole Diam, 5 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 58450669
Brand: Kennametal
Model #: 1246114
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 16.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Number of Teeth | 5 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 5100 |
| Minimum Cutting Width (Decimal Inch) | 0.0630 |
| Hub Diameter (mm) | 32.00 |
| Hub Diameter (Decimal Inch) | 1.2598 |
| Cutter Body Width (mm) | 1.30 |
| Cutter Body Width (Decimal Inch) | 0.0512 |
| Complete Insert Compatibility1 | 3.90016.. |
