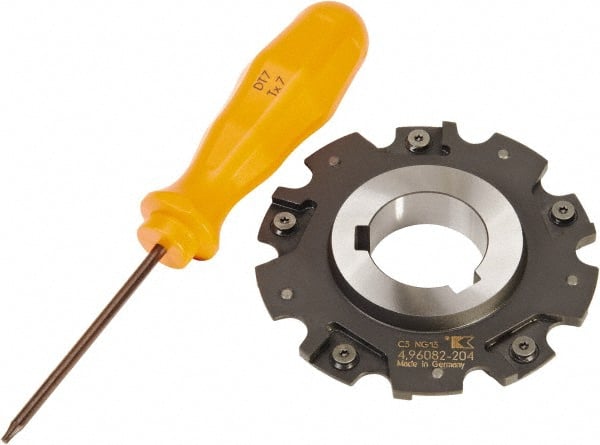

Kennametal - Arbor Hole Connection, 0.1575" Cutting Width, 0.5906" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, 5 Tooth Indexable Slotting Cutter - 90° SN Toolholder, SNHX Insert
Item #: 58450693
Brand: Kennametal
Model #: 1244389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 5 |
| Toolholder Style | 90 SN |
| Series | SN |
| Insert Style | SNHX |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1575 |
| Hub Diameter (mm) | 45.00 |
| Hub Diameter (Decimal Inch) | 1.7717 |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility1 | SNHX 1102.. |
