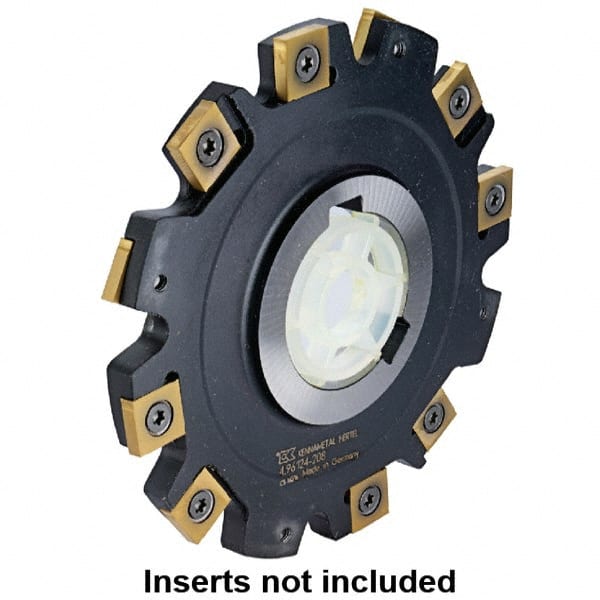

Kennametal - Arbor Hole Connection, 0.3937" Cutting Width, 1.1811" Depth of Cut, 125mm Cutter Diam, 1.5748" Hole Diam, 6 Tooth Indexable Slotting Cutter - 90° SN Toolholder, SNHX Insert
Item #: 58450750
Brand: Kennametal
Model #: 1244374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 6 |
| Toolholder Style | 90 SN |
| Series | SN |
| Insert Style | SNHX |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Hub Diameter (mm) | 58.00 |
| Hub Diameter (Decimal Inch) | 2.2835 |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility1 | SNHX 12L5.. |
